Ulefone Armor Mini 20T Pro 5G Rugged Phone: LED Light, 6200mAh, 33W
Ulefone Armor Mini 20T Pro is a 5G rugged phone with
a powerful LED light. Features 6200mAh battery and 33W charging.
Only logged in customers who have purchased this product may leave a review.
Description
- Hign-concerned Chemical: None
- Built-in GPS: Yes
- Video recording resolution: FullHD (1080p) 30 fps,2K (1440p) 30 fps
- IP68/IP69K: Yes
- Charging Power: 33W
- Touch Screen: Yes
- Other Features: 5G Mobile Phone,Fast Charging Phone,Sports Phone
- Screen Refresh Rate: 90 Hz
- Wi-Fi Transmission Standard: 802.11ac,802.11n 2.4GHz/5 GHz,802.11n 2.4 GHz,802.11b/g,802.11a
- Bluetooth Version: YES
- Battery Capacity Range: 6000-7499mAh
- Rear Camera Quantity: 1
- Wireless Charging: Yes
- NFC: Yes
- Biometrics Technology: Side-Mounted,Face Recognition
- Charging Interface Type: Type-C
- Front Camera Quantity: 1
- 3.5mm Headphone Port: Yes
- Fast Charging: Flashcharge
- Screen Type: Fullview Display
- Rear Camera Pixel: 50MP
- Front Camera Pixel: 32MP
- Battery Capacity(mAh): 6200mAh
- CPU Model: MTK
- Battery Type: Not Detachable
- Display Resolution: 1600×720
- SIM Card Quantity: 2 SIM Card
- Language: English,Russian,German,French,Spanish,Polish,Portuguese,Italian,Turkish,Norwegian,Korean,Japanese,Arabic
- Display Size: 4.7
- Cellular: 3G,2 G,4G,5 G
- Operation System: Android
- Item Condition: New
- Brand Name: ULEFONE
- Design: BAR
- Origin: Mainland China
- WIFI: Yes
- Certification: CE,FCC,RoHS
- CPU Model: MediaTek Dimensity 6300
- CPU Core: 8, 2 x Arm Cortex-A76, 6 x Arm Cortex-A55
- Working Temperature: -20℃ – 55 ℃
- Certification: IP68/IP69K/MIL-STD-810H

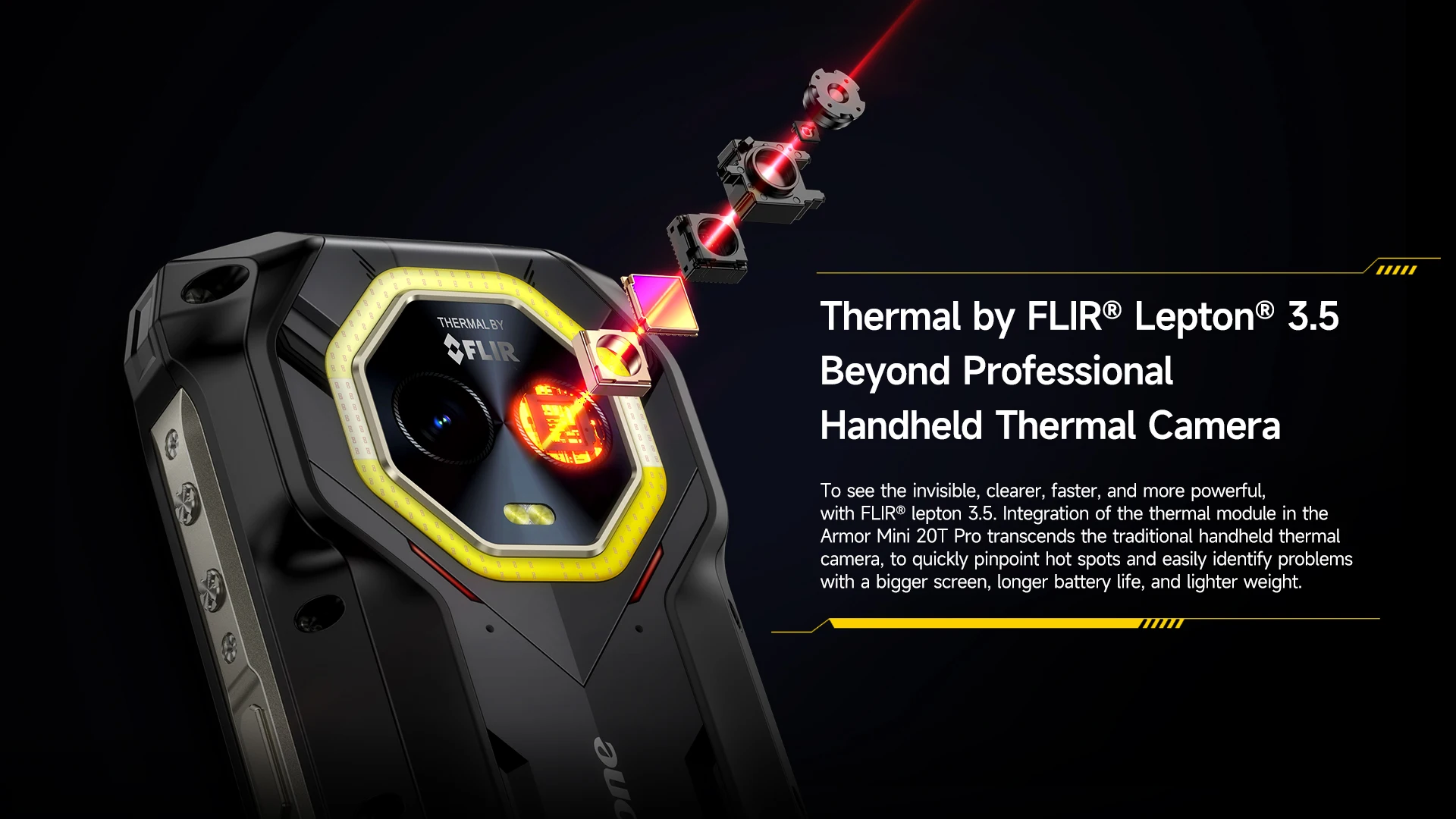

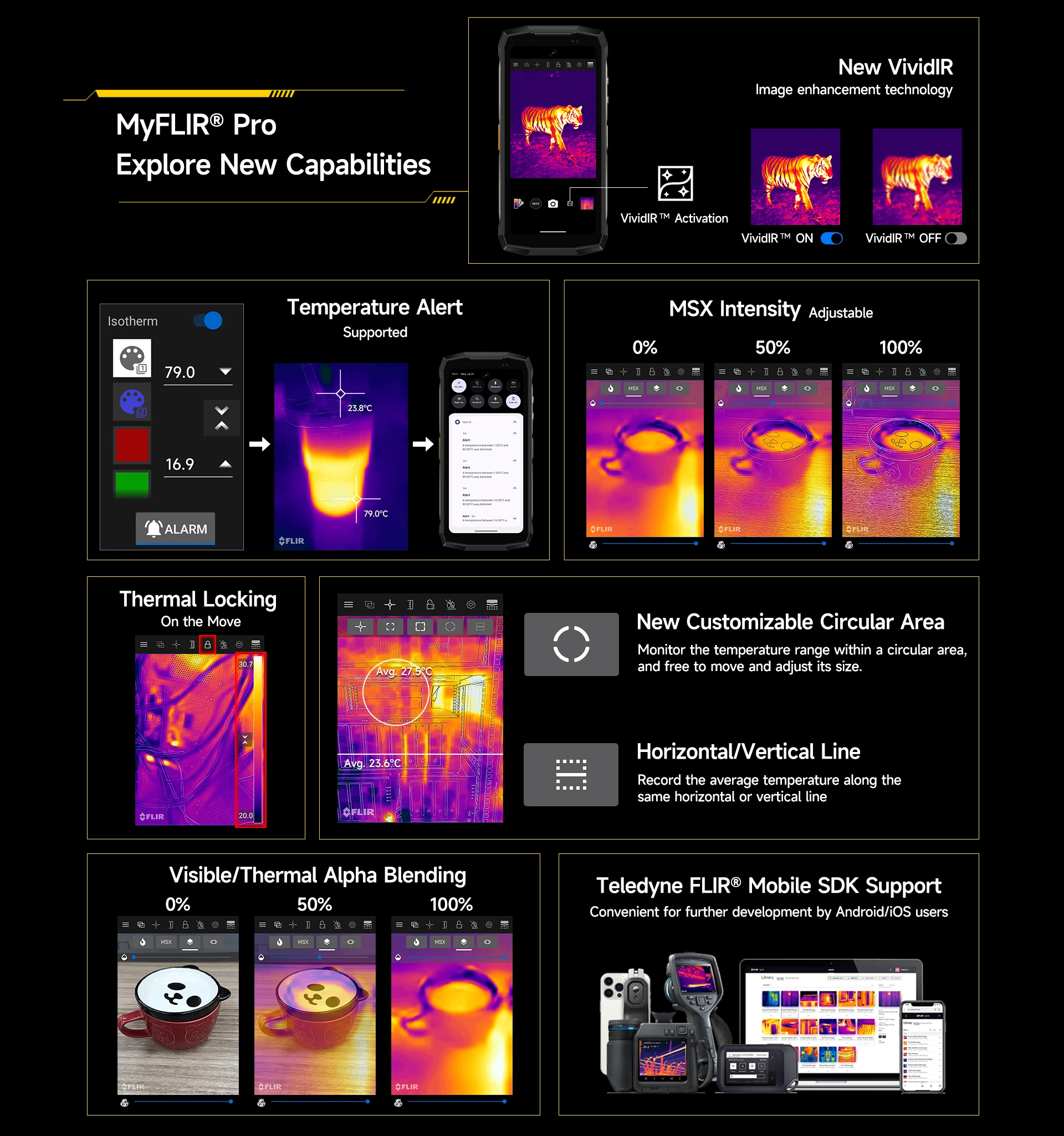

- Thermal Imaging: MyFLIR Pro
- Temperature Measurement: -10°C to 450°C
- GPU: Arm Mali-G57 MC2 1.0GHz
- RAM: 16GB =8GB+8GB virtual RAM
- ROM: 256GB
- Max. Expansion Supported: 2TB
- Video Recording Resolution: 2K@30fps, FHD@30fps, HD@30fps, VGA@30fps
- Card Type: Nano+Nano/microSD
- Standby Mode: Dual sim dual standby
- Bluetooth Version: BT5.2
- Navigation: GPS/GLONASS/Beidou/Galileo/QZSS
- Android: Android 14

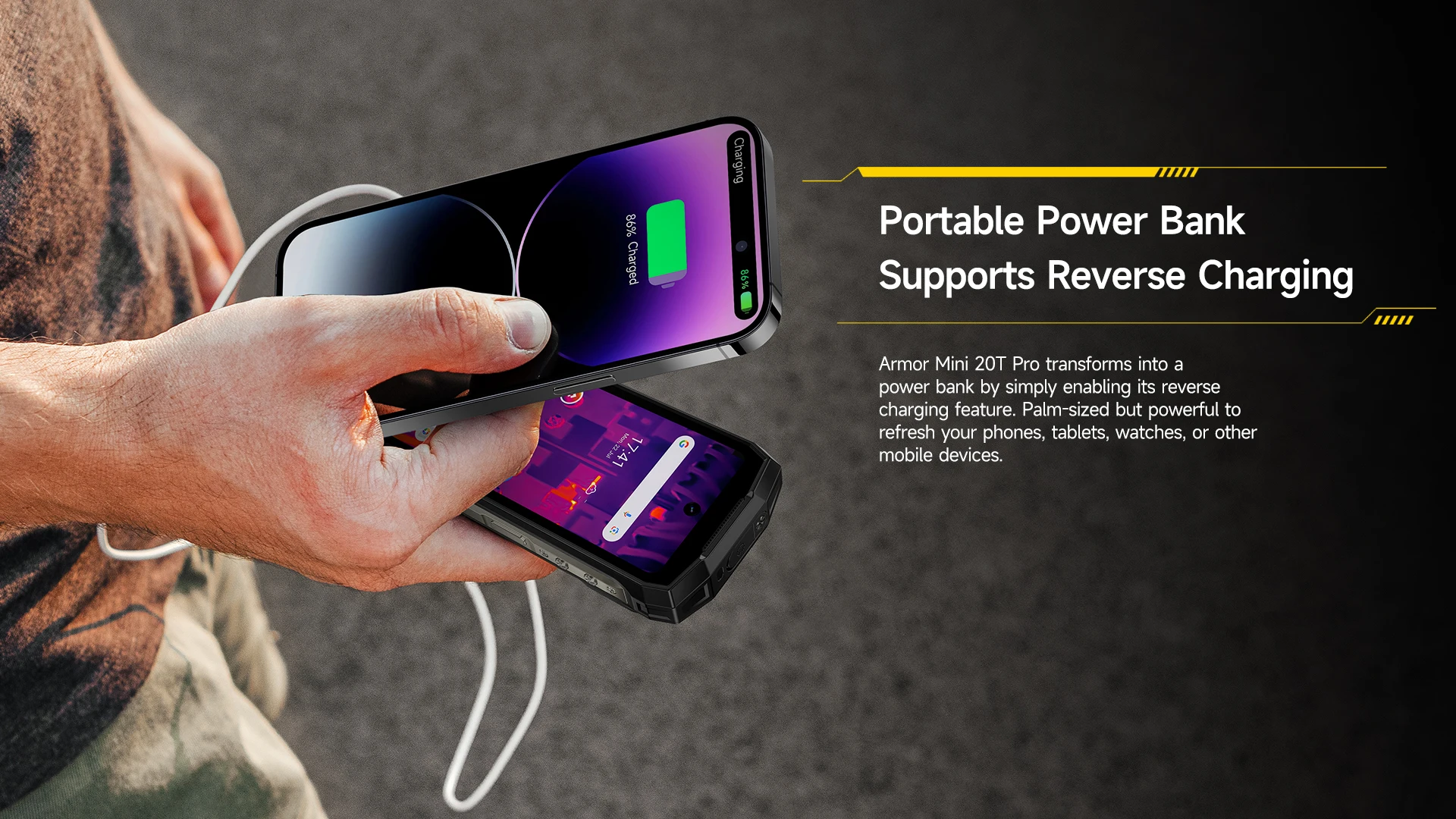

- OTG Function: Support Reverse Charging
- NFC: Support
- IR Blaster: Support
|
|
|
|
|
|
|
|
|
|
|
*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile, Koodo, Telus Wireless, Fido *Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier’s testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor Mini 20T Probably  5G supports their network. |
     5G: 5G NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79 |
     4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66/71
|
     3G: WCDMA: B1/2/4/5/6/8/19 |
     2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10 |

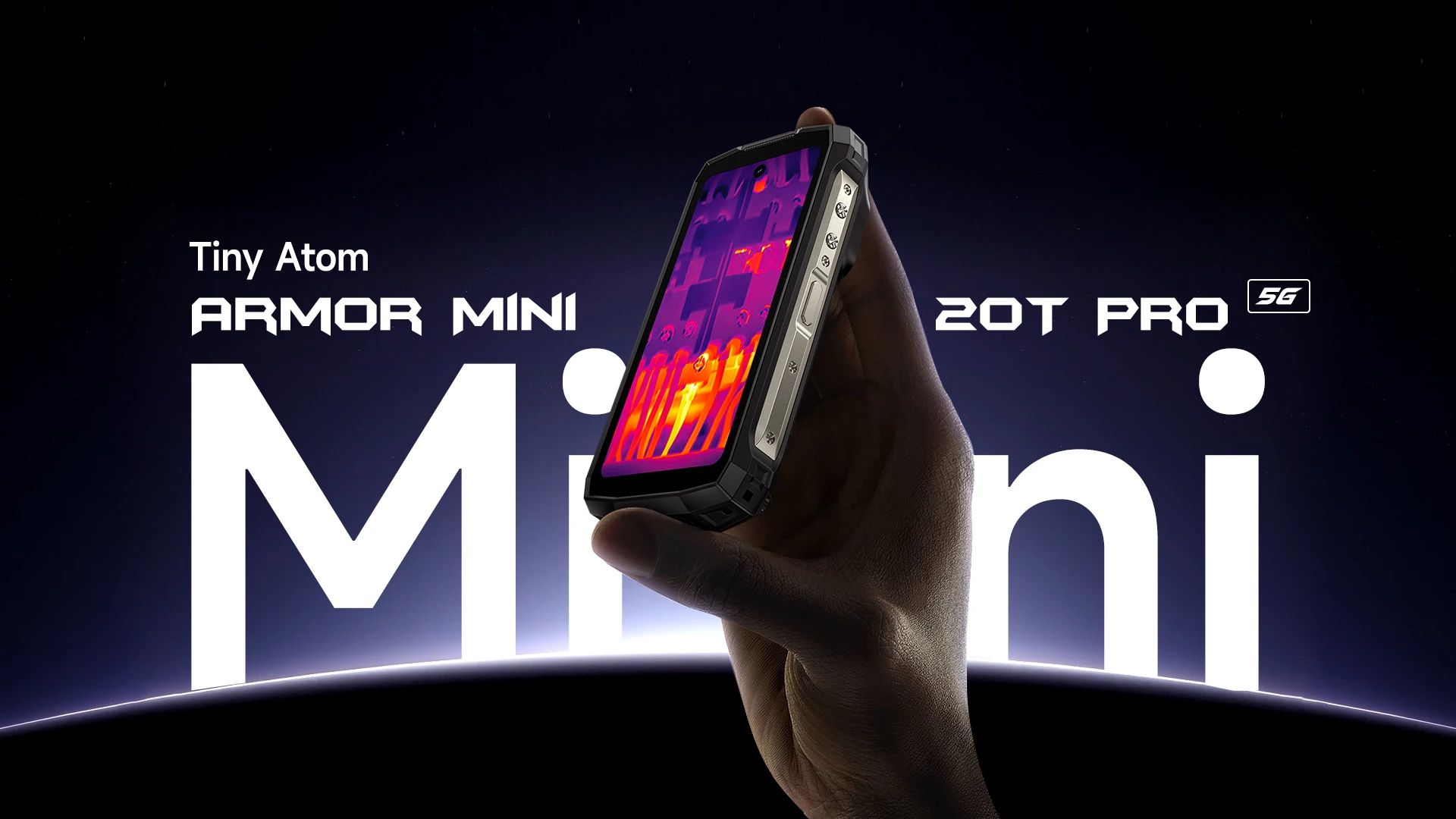

Single-handed Operation
Compact Mecha Conqueror
Handy and portable with a palm size, ready to accompany you on the go, offering convenient one-handed operation at your fingertips. The all-new mecha profile states a fusion of strength and technology, stepping into the realm of tomorrow.

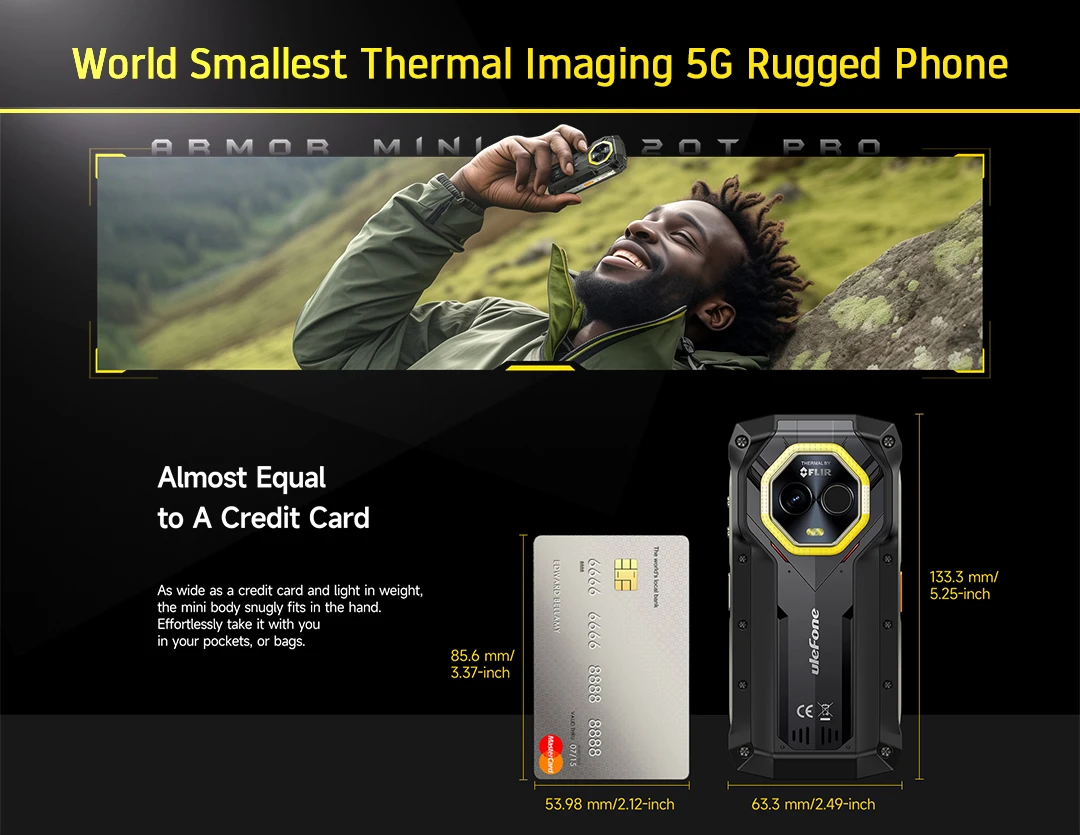

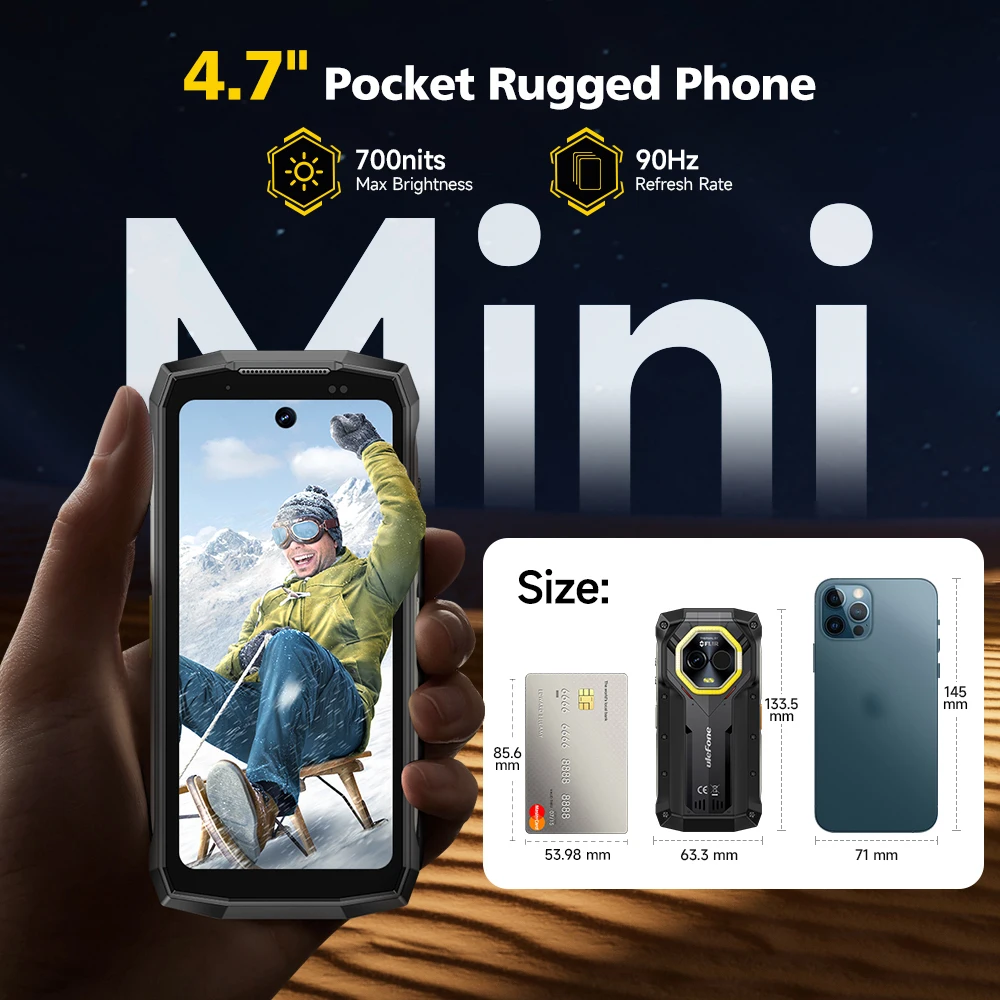

Almost Equal to A Credit Card
As wide as a credit card and light in weight, the mini body snugly fits in the hand. Effortlessly take it with you in your pockets, or bags.
All in 4.7″ Display
Vibrant Clarity, Fluid Motion
Armor Mini 20T Pro boasts a compact 4.7-inch display with a 720 x 1600 resolution and a pixel density of 373 PPI, delivering sharp and vibrant visuals. It also features a 700 nits max brightness for excellent visibility in outdoor sunlight and a 90Hz refresh rate for smoother visuals.

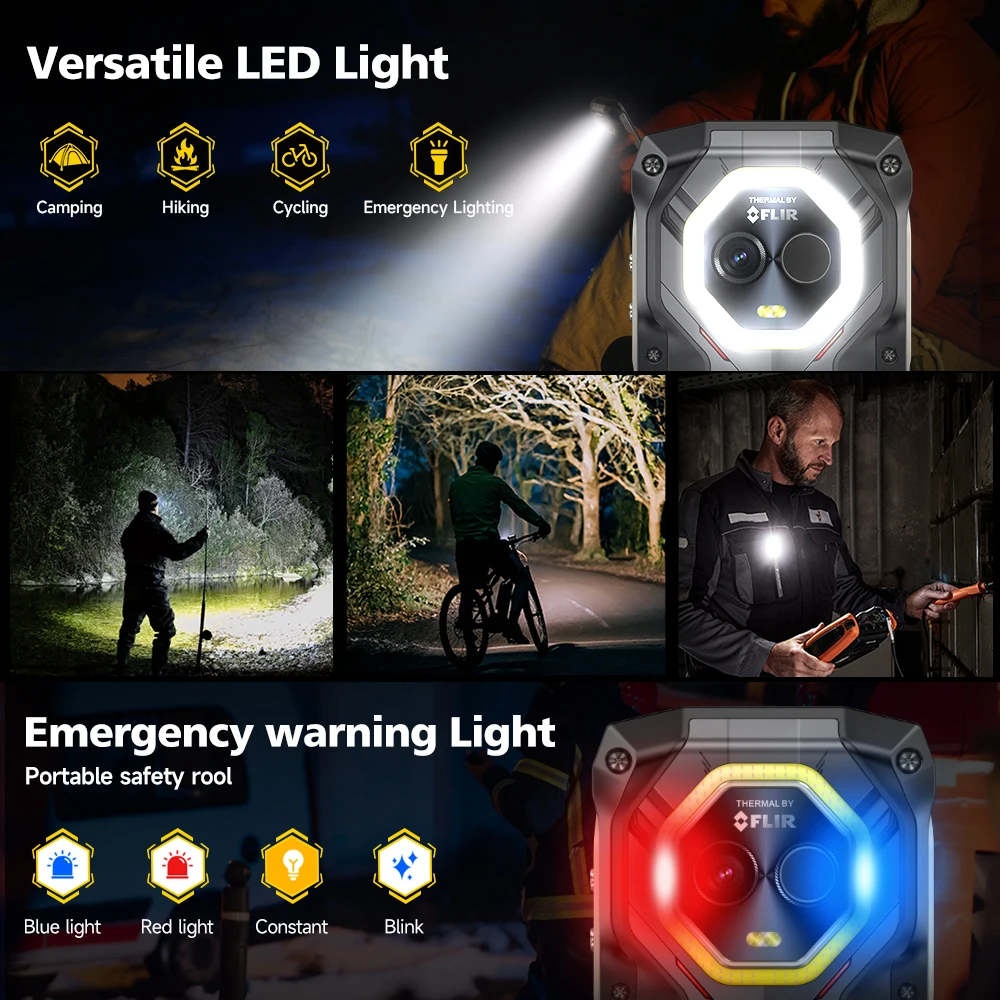

Versatile LED Light
Infinitely Variable Control
The polygon LED light surrounding the camera modules adds ornaments and practical lighting solutions. With 130 LEDs and a 500 lumens max brightness, it offers different modes with infinite brightness adjustment; and a physical button for one-key lighting; ideal for fill light or any situation where a reliable and portable light source is required.

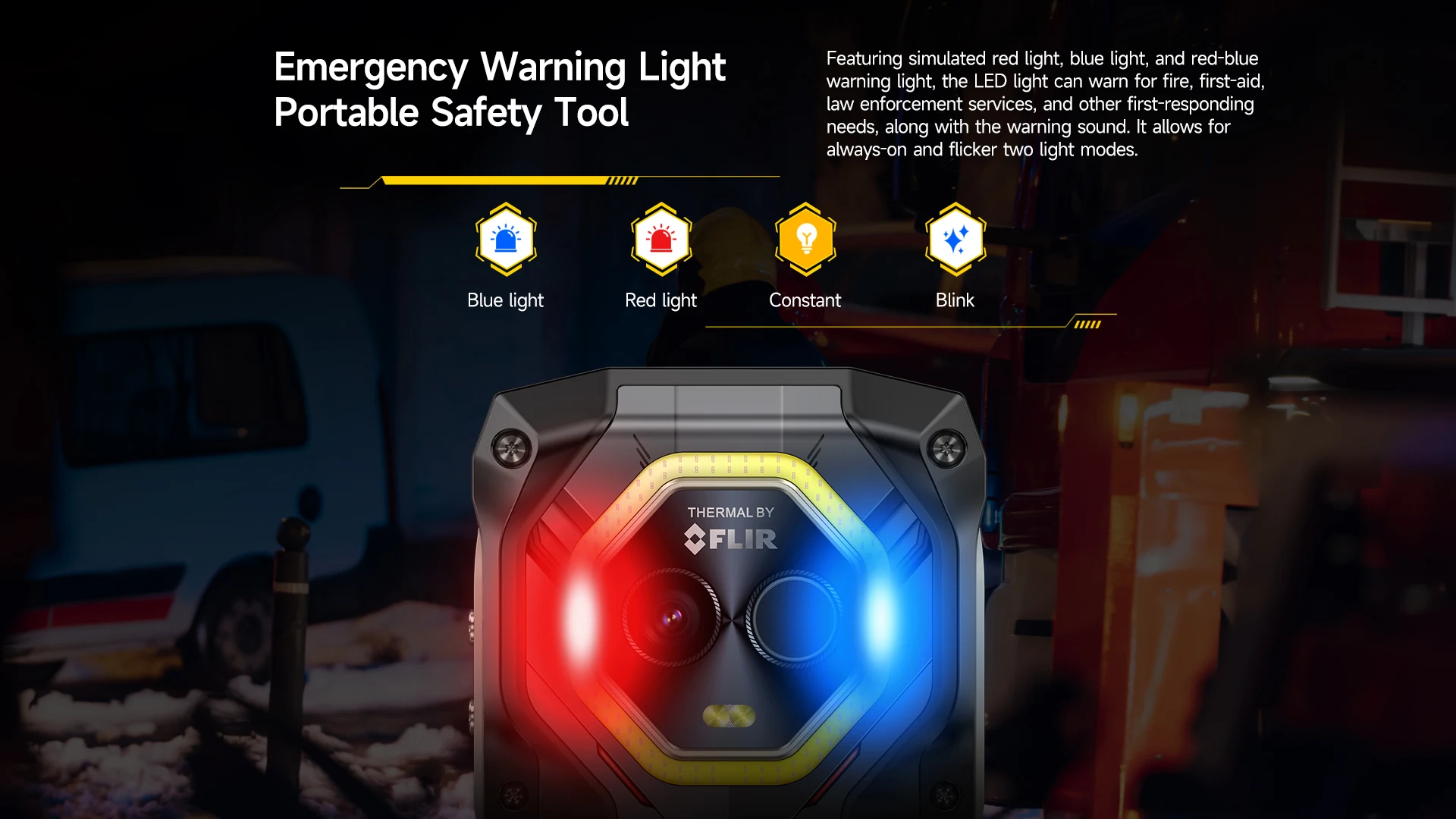

Emergency Warning Light
Portable Safety Tool
Featuring simulated red light, blue light, and red-blue warning light, the LED light can warn for fire, first-aid, law enforcement services, and other first-responding needs, along with the warning sound. It allows for always-on and flicker two light modes.

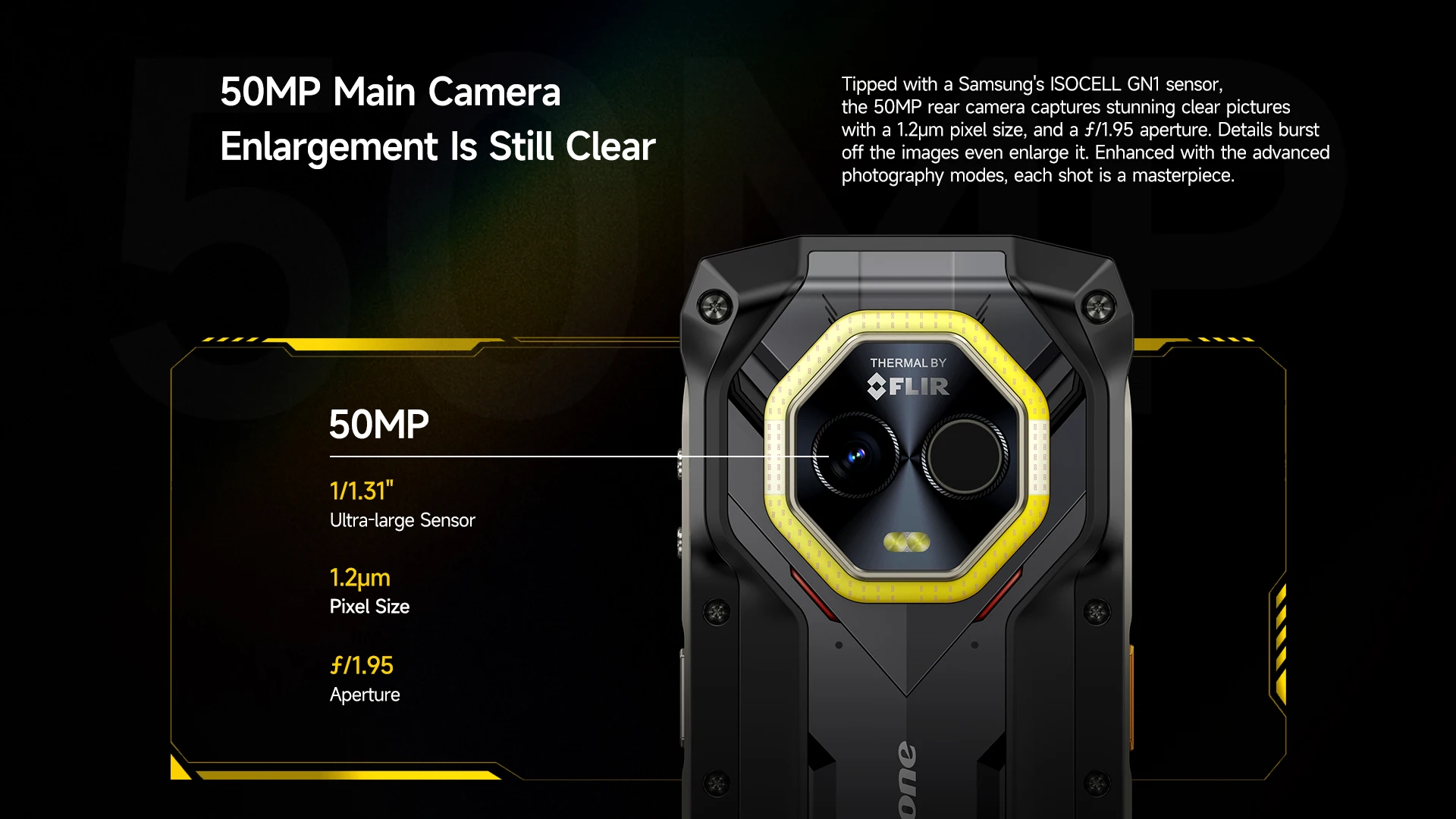

50MP Main Camera
Enlargement Is Still Clear
Tipped with a Samsung’s ISOCELL GN1 sensor, the 50MP rear camera captures stunning clear pictures with a 1.2μm pixel size, and a Æ’/1.95 aperture. Details burst off the images even enlarge it. Enhanced with the advanced photography modes, each shot is a masterpiece.
LED Fill Light LED
Every Shot Is Brilliantly Lit
Boost your photography and videography with the powerful LED array built in Armor Mini 20T Pro.
High-speed 5G Network
Access 5G Mobile WiFi
Get expanded 5G band coverage and reliable lightning-fast for downloading and streaming videos, no congestion and more power efficiency. And Armor Mini 20T Pro can serve you 5G mobile hotspot for other devices, portable WiFi is right where you want it.
*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile, Koodo, Telus Wireless, Fido*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier’s testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor Mini 20 Pro bably 5G supports their network.
MediaTek Dimensity 6300 5G SoC
Hyper Engine, Hyper Speed
The powerhouse 6nm chipset, MediaTek Dimensity 6300, combines an 8-core CPU to deliver high-speed performance for multitasking. With 5G connectivity, you are access to seamless streaming, calling, and web browsing, all while maintaining power efficiency.
Up to 16GB RAM + 256GB ROM
16GB RAM = 8GB +8GB Virtual RAM
No Struggling with Space Clearance
Mighty SoC with a large 16GB of RAM makes it handle multi-application with ease. Coupled with up to 256GB of ROM, with supports for 2TB expandable storage, without struggling with congested space.

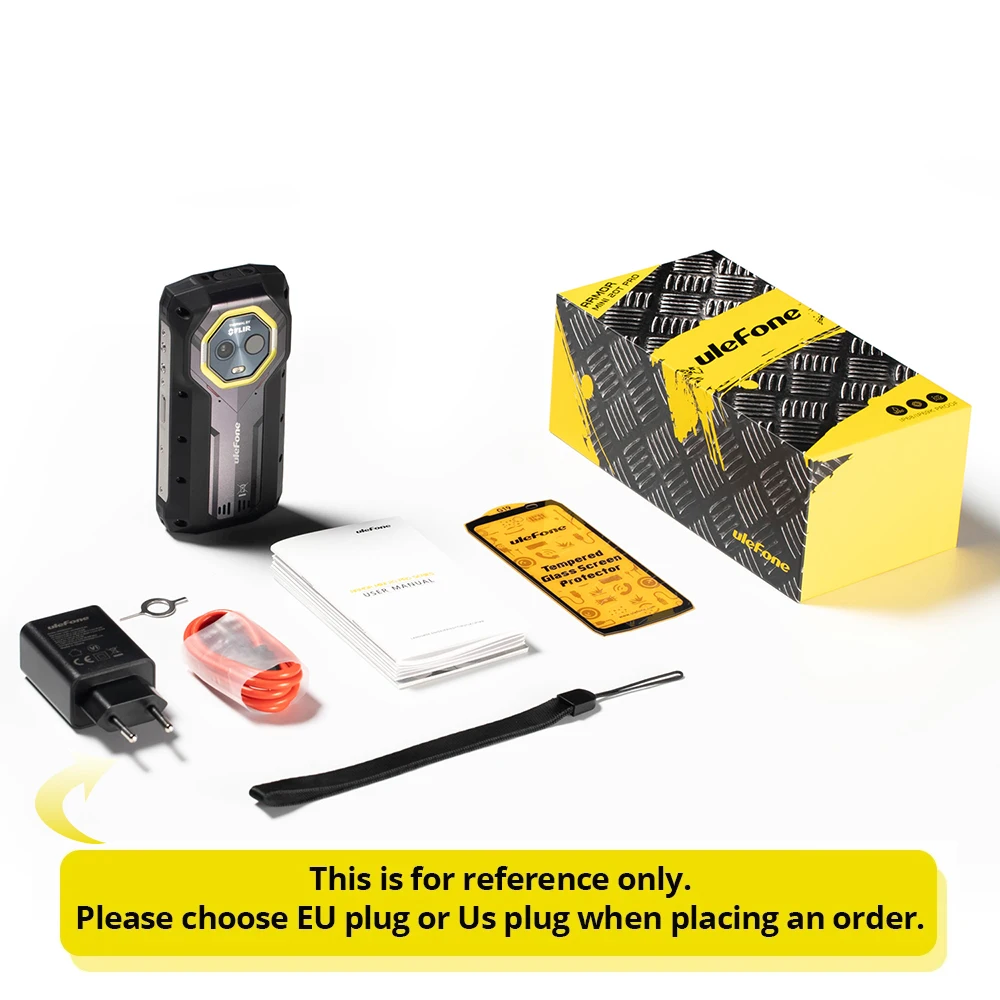

About Power charger
1 Please choose EU plug or US plug when placing an order. （ * No other plug specification are available）
2： If you have any questions about the plug of the charger, please contact customer services in advance. Please note that the plug of the charger is not within the scope of After-Sales services.
Ulefone Armor Mini 20T Pro Specifications |
|
Physical Characteristics |
|
Color |
Black |
Material |
PC |
USB |
Type-C, USB 2.0 |
Headphone Jack |
3.5mm Headphone Jack |
Expansion Connector |
N/A |
Card Slots |
2, 1x Nano-SIM + 1x Nano-SIM/microSD |
Keys |
Right: Power button(Fingerprint)+Volume button, Left: Custom Key |
Size & Weight |
|
Product Size |
133.5 x 63.3 x 24.9 mm |
Product Weight |
301g/10.6 ounces |
Package Size |
99 x 198 x 77.5 mm |
Product size and weight may vary by configuration, manufacturing process and measurements.All specifications are subject to the actual product. |
|
Ruggedness |
|
Certification |
IP68/IP69K/MIL-STD-810H |
Splash, Water, and Dust Resistant |
Maximum depth of 20m up to 30 minutes |
Drop resistance |
Up to 10m tall |
Working Temperature |
-20℃ – 55 ℃(-22℉ – 131℉) |
Display |
|
Screen Size |
4.7-inch |
Screen Resolution |
720 x 1600 HD+ |
Aspect Ratio |
20:9 |
PPI |
373 |
Color Depth |
8bit, 16.7M |
Refresh Rate |
90Hz |
Screen-to-Body Ratio |
79% |
Multi-touch |
5 |
Processor |
|
CPU Model |
MediaTek Dimensity 6300 |
Main frequency |
2.4GHz |
CPU Core |
8, 2 x Arm Cortex-A76, 6 x Arm Cortex-A55 |
GPU |
Arm Mali-G57 MC2 1.0GHz |
RAM & Storage |
|
RAM |
16GB=8GB LPDDR4X + 8GB virtual RAM (The virtual RAM can be activated in Settings at your will. ) |
ROM |
256GB UFS2.2 |
Max. Expansion Supported |
2TB |
Rear Camera |
|
Rear Camera Numbers |
1 |
Main Rear Camera |
Pixel: 50MP |
Details: Samsung GN1 CMOS sensor, 1.2μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture |
|
Flash |
2 |
Video Recording Resolution |
2K@30fps, FHD@30fps, HD@30fps, VGA@30fps |
Special Features |
Normal mode, Film mode, 50MP mode, Night mode, Document correction, GroupPhoto, AI Emoji, Gif, Portrait, Sports, Pro mode, Panorama, Slow motion, Time lapse, Intelligent acanning |
Front Camera |
|
Pixel |
32MP |
Details |
Details: Samsung GD1 CMOS sensor, 0.8μm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture |
Video Recording Resolution |
2K(30fps), FHD(30fps), HD(30fps), VGA(30fps) |
Special Features |
Normal mode, Film mode, GroupPhoto, AI Emoji, Gif, Portrait |
Battery & Charging |
|
Capacity |
6200mAh |
Watt Hours Per Battery |
23.994 Wh |
Battery Type |
Li-ion Sub-zero Solid-State Battery |
Charging Details |
33W, 11V3A |
Wireless Charge |
Support, 15W, Ulefone private protocol |
Reverse Charge |
Wireless Reverse Charging, 5W |
Standby Time |
336 Hours |
Talk Time |
34 Hours |
Network & Connectivity |
|
Card Type |
Nano+Nano/microSD |
Cellular |
5G/4G/3G/2G |
*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile, Koodo, Telus Wireless, Fido*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier’s testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor Mini 20 Pro bably 5G supports their network. |
|
Band Details |
5G: 5G NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79 |
4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/
|
|
3G: WCDMA: B1/2/4/5/6/8/19 |
|
2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10 |
|
Standby Mode |
Dual sim dual standby |
VoNR |
Support |
VoLTE |
Support |
WiFi |
2.4G/5G, 802.11 a/ac/b/g/n |
Bluetooth Version |
BT5.2 |
Navigation |
GPS/GLONASS/Beidou/Galileo/QZSS |
Audio |
|
Speaker Numbers |
1 |
Speaker Model |
1326 BOX |
Speaker Power |
Max 1.5W |
Smart PA |
AW88394 |
Versatile LED Light |
|
LED Beads |
130 Pieces (102 white light beads,14 blue light beads, 14 red light beads) |
Brightness |
Max 500 lumens |
Light Power |
Max 5W |
Shortcut Key |
Support, Custom Key |
APP |
Camping Light |
Modes |
Lighting, adjustable brightness settings; duration settings of 5-30mins. |
Sharp Light, duration settings of 5-30mins. |
|
SOS |
|
Safety Protection |
Support |
Warning Light |
|
APP |
RedBluePoliceLight |
Simulated Light Effect |
Red Light, Blue Light, Red-Blue Light |
Simulated Warning Sound |
Fire, Ambulance, Police Car, and other first responding warning sound |
Lighting Modes |
2, Constant or Blink |
Security |
|
Fingerprint ID |
Support |
Face Unlock |
Support |
System & Features |
|
Android Version |
Android 14 |
Language |
Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Â Â Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese |
Blinking Notification Light |
Support, red/green/blue light |
Battery Status Light |
Support |
Audio Format Supported |
MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2 |
Video Format Supported |
MOV/MKV/3GP/MP4 |
Image Format Supported |
GIF/JPEG/PNG/BMP |
Text Format Supported |
TXT/HTML |
FM Radio |
Support,headset-free FM radio |
Cell Broadcast |
Support |
Sensor |
Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Thermal Sensor, Infrared sensor |

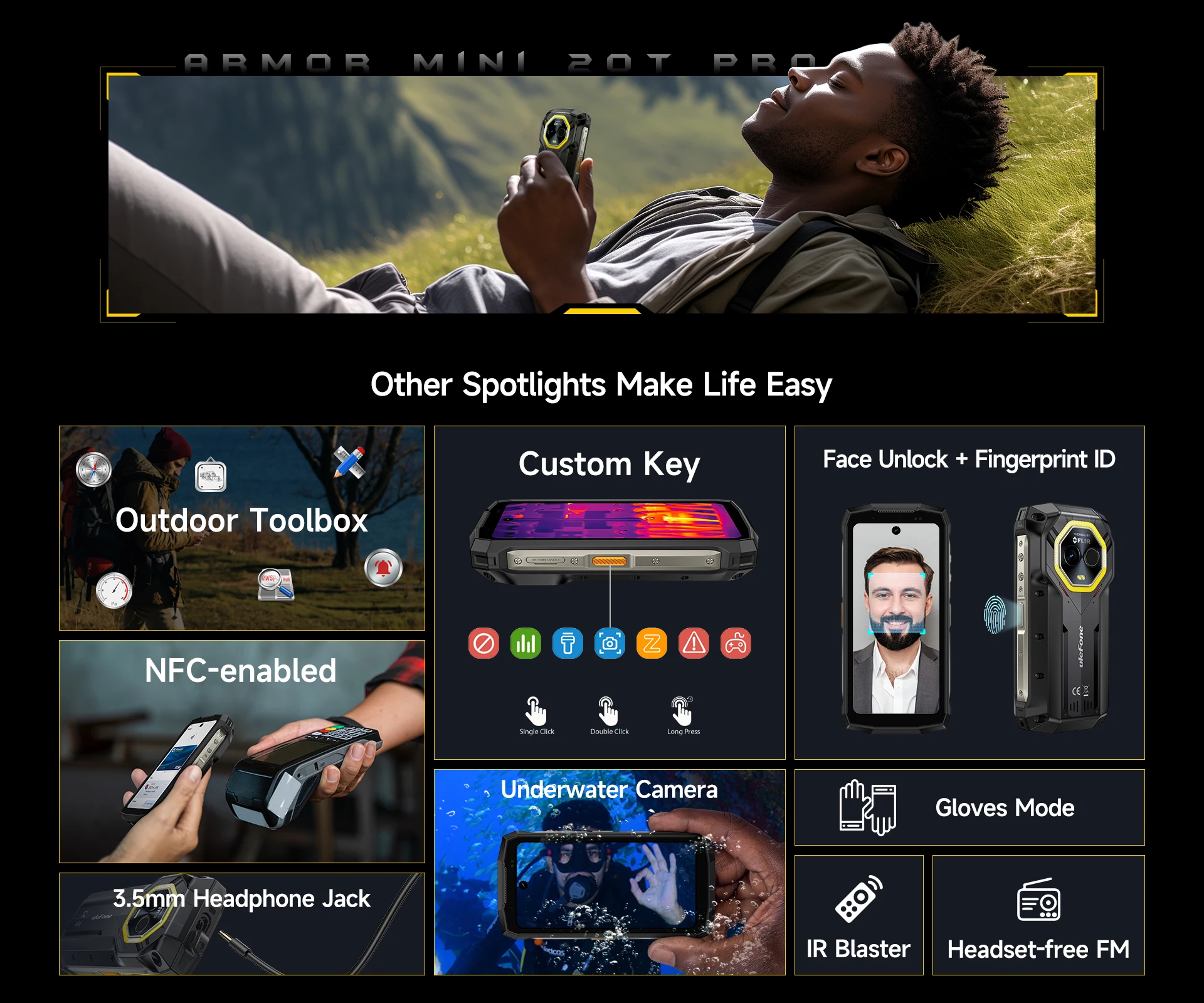

Special Features |
|
Underwater Camera |
Support |
Gloves Mode |
Support |
Digital Toolbox |
Height Meter, Compass, Gradienter, Flashlight, Hanging Painting, Magnifier, Â Â Â Â Â Â Â Â Â Alarm bell, Plumb bob, Protractor, Noise Test, Pedometer, Barometer, Funny Sound |
OTG Function |
Support Reverse Charging |
NFC |
Support |
IR Blaster |
Support |
Others |
|
Packing List |
1 x Phone
|
Product Certification |
CE, IP68, IP69K, MIL-STD-810H, WEEE, ROHS.TAC, UN38.3,MSDS, IEC62133 |
1.1: For non-human damage, we support 1 year warranty counted from the date of purchase. not including accessories and batteries.(Buyer is responsible for the returning shipping cost.)
1.2 : For any exchange or refund,we need the product must be in its original condition,including the box,and all accessories.Buyer is responsible for the returning shipping cost.
After receiving the goods, please inspect the package immediately and record an unboxing video. If there are any issues, please contact us promptly
2.1:The difference between (European union)(Other Area)(Russian Area)
There is no difference between software and hardware, just to comply with relevant laws and regulations. Users are expected to select the corresponding version based on their region when purchasing.
When the corresponding version is out of stock. we will replace another version for you,does not affect the use . Please don’t worry
2.2:The stated ROM amount shows the maximum available ROM with nothing installed. However, the Android OS will occupy some of this ROM. The available ROM on the device will be less than the publicity.
2.3: The standard testing information of the phone is referred to the information from AnTuTu Benchmark App, and we don’t bear the testing information from CPU-Z as it is normally suitable for computer. Also, we don’t bear the test information from other apps or through other devices. Since we can’t make sure their accuracy and profession.
3.1:We ship to most of countries.except AFO&FPO.
3.2: Items are shipped from China using Ali Express Standard Shipping,reach most of countries within 10 to 20 business Delivery time depends on destination and other factors, it may takes up to 30-45 business days .
4.1: We maintain high standards of excellence and strive for 100% customer satisfaction!
4.2: Â Feedback is very important, we hope you can contact us immediately before you give us neutral or negative feedback, so that we can satisfactorily address your concerns. It is impossible to address issues if we do not know about them .
Additional information
| Bundle | EU Plug, US Plug |
|---|---|
| Hign-concerned Chemical | None |
| Built-in GPS | Yes |
| Video Recording Resolution | 2K@30fps, FHD@30fps, HD@30fps, VGA@30fps |
| IP68/IP69K | Yes |
| Charging Power | 33W |
| Touch Screen | Yes |
| Other Features | 5G Mobile Phone,Fast Charging Phone,Sports Phone |
| Screen Refresh Rate | 90 Hz |
| Wi-Fi Transmission Standard | 802.11ac,802.11n 2.4GHz/5 GHz,802.11n 2.4 GHz,802.11b/g,802.11a |
| Bluetooth Version | BT5.2 |
| Battery Capacity Range | 6000-7499mAh |
| Rear Camera Quantity | 1 |
| Wireless Charging | Yes |
| NFC | Support |
| Biometrics Technology | Side-Mounted,Face Recognition |
| Charging Interface Type | Type-C |
| Front Camera Quantity | 1 |
| 3.5mm Headphone Port | Yes |
| Fast Charging | Flashcharge |
| Screen Type | Fullview Display |
| Rear Camera Pixel | 50MP |
| Front Camera Pixel | 32MP |
| Battery Capacity(mAh) | 6200mAh |
| CPU Model | MediaTek Dimensity 6300 |
| Battery Type | Not Detachable |
| Display Resolution | 1600×720 |
| SIM Card Quantity | 2 SIM Card |
| Language | English,Russian,German,French,Spanish,Polish,Portuguese,Italian,Turkish,Norwegian,Korean,Japanese,Arabic |
| Display Size | 4.7 |
| Cellular | 3G,2 G,4G,5 G |
| Operation System | Android |
| Item Condition | New |
| Brand Name | ULEFONE |
| Design | BAR |
| Origin | Mainland China |
| WIFI | Yes |
| Certification | IP68/IP69K/MIL-STD-810H |
| CPU Core | 8, 2 x Arm Cortex-A76, 6 x Arm Cortex-A55 |
| Working Temperature | -20℃ – 55 ℃ |
| Thermal Imaging | MyFLIR Pro |
| Temperature Measurement | -10°C to 450°C |
| GPU | Arm Mali-G57 MC2 1.0GHz |
| RAM | 16GB =8GB+8GB virtual RAM |
| ROM | 256GB |
| Max. Expansion Supported | 2TB |
| Card Type | Nano+Nano/microSD |
| Standby Mode | Dual sim dual standby |
| Navigation | GPS/GLONASS/Beidou/Galileo/QZSS |
| Android | Android 14 |
| OTG Function | Support Reverse Charging |
| IR Blaster | Support |
| color | Add Film, Add Film Case, Add Film UAN01, Add Film UF005, Add Film UF005 Case, Armor Mini 20T Pro |
| Ships From | CHINA, Mexico, uzbekistan |
Reviews
There are no reviews yet
